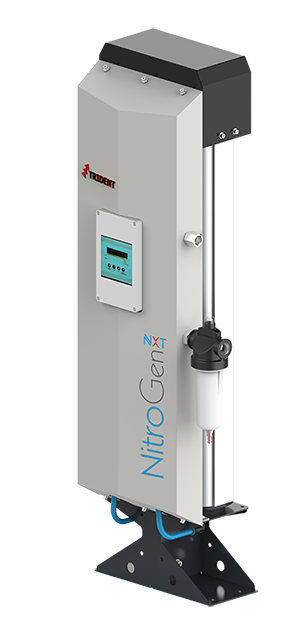

Nitrogen Generator (NXT)
With the Trident Nitrogen (NXT) series, you bring high-purity (up to 99.99%) nitrogen production directly to your shop floor. This compact, advanced solution eliminates third-party delivery hassles and protects your operations from fluctuating gas prices. By generating your own N2 on-site you cover requirements as low as one cylinder per week and the Nitrogen (NXT) can fit easily into your existing compressed air network.
| Operating conditions | |
|---|---|
| Operating Pressure range | 7 bar (g) to 9 bar (g) |
| Nitrogen pressure | 5.5 bar (g) to 7.5 bar (g) |
| Inlet temperature | +5°C to + 40°C |
| Air quality requirement | as per ISO 8573.1-1.5.1 |
| Electrical requirement for nitrogen generator | 100 to 230 V, 50/60 hz, single phase |
Benefits
- Produce as per demand
- Avoid Cylinder Availability Issues
- Avoid Logistics and Management Problem
- Eliminate safety risk associated with handling high pressure cylinders
- Faster payback period within 1 year and lesser
- Avoid unused gas in the cylinder
Technical Specification
| Units | Oxygen level % | Nitrogen purity % | Air factor | NitroGenNXT 45 | NitroGenNXT 65 | NitroGenNXT 130 | NitroGenNXT 200 | NitroGenNXT 260 |
|---|---|---|---|---|---|---|---|---|
| Nm³/hr | 0.01 | 99.99 | 3.5 | 2.7 | 3.89 | 7.79 | 11.68 | 15.58 |
| LPM | 44.93 | 64.9 | 129.79 | 194.69 | 259.58 | |||
| Nm³/hr | 0.1 | 99.9 | 3.2 | 2.94 | 4.24 | 8.49 | 12.73 | 16.97 |
| LPM | 48.96 | 70.73 | 141.43 | 212.16 | 282.89 | |||
| Nm³/hr | 0.5 | 99.5 | 3.1 | 3.42 | 4.94 | 9.88 | 14.82 | 19.76 |
| LPM | 57 | 82.33 | 164.67 | 247 | 329.33 | |||
| Nm³/hr | 1 | 99 | 2.8 | 3.63 | 5.24 | 10.48 | 15.72 | 20.97 |
| LPM | 60.48 | 87.36 | 174.72 | 262.08 | 349.44 | |||
| Nm³/hr | 2 | 98 | 2.5 | 4.36 | 6.3 | 12.59 | 18.89 | 25.19 |
| LPM | 72.66 | 104.96 | 209.9 | 314.86 | 419.82 | |||
| Nm³/hr | 3 | 97 | 2.2 | 4.58 | 6.61 | 13.23 | 19.84 | 26.46 |
| LPM | 76.32 | 110.23 | 220.49 | 330.72 | 440.95 | |||
| Nm³/hr | 5 | 95 | 2.1 | 6.01 | 8.68 | 17.37 | 26.05 | 34.74 |
| LPM | 100.2 | 144.74 | 289.46 | 434.2 | 578.94 | |||
| L (mm) | 609.6 | 609.6 | 609.6 | 609.6 | 609.6 | |||
| W (mm) | 508 | 508 | 787.4 | 838.2 | 1016 | |||
| H (mm) | 1397 | 1752.6 | 1752.6 | 1752.6 | 1752.6 | |||
| Net (Kg) | 57 | 68 | 125 | 183 | 240 | |||
| Gross (Kg) | 95 | 122 | 185 | 248 | 310 | |||
| Product code | Purity 95-99% | 8059240922 | 8059240923 | 8059240924 | 8059240925 | 8059240926 | ||
| Purity 99.5-99.99% | 8059240944 | 8059240945 | 8059240946 | 8059240947 | 8059240948 | |||
