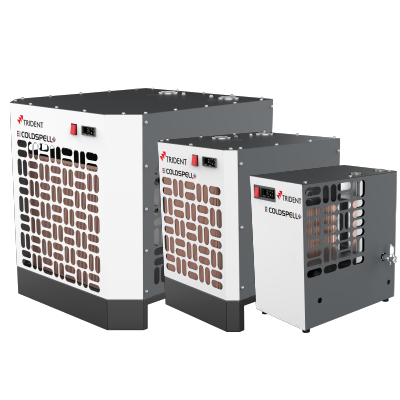

Coldspell Plus
Our refrigerated dryers are the perfect solution for preventing condensation and corrosion in your compressed air system. With minimal maintenance required, our dryers deliver maximum uptime. Their innovative design offers reliability, efficiency, and a compact footprint, making them ideal for all industrial applications.
Eliminate moisture. Elevate performance
- Dry compressed air improves your product reliability
- Extends equipment or tool life
- Supports uninterrupted production
Standards compliance
- The dryer is designed to operate under nominal standard inlet conditions as per ISO 7183 – 2007 (option B)
- Dryer air quality: ISO 8573-1:2010 (E), Class 5
Features that drive performance
- High efficiency 3 in 1 heat exchanger
- Advanced featured smart controller
- Consistent dew point temperature
- Low power consumption
- Less maintenance
- Single-phase plug and play
- Compact design
Trident smart digital controller
- Capacitive touch buttons
- Digital dew point temperature
- Fan & Compressor run status
- Compressor delay time
- Condensate drain ON indication
- Probe failure indication
Specification
- Maximum operating pressure: 13 bar (g)
- Working pressure: 7 bar (g)
- Pressure drop: < 0.3 bar (d)
Refrigerant:
- COLDSPELL+ 20 to 150: R134a
- COLDSPELL+ 200 to 500: R407c
Electrical supply: 230 VAC – 50 HZ – 1 PH
Product Range
| Model | Item code | Inlet capacity scfm | Power consumption KW | End connection | Dimensions | ||
|---|---|---|---|---|---|---|---|
| Lmm | Wmm | Hmm | |||||
| COLDSPELL+ 20 | 8059240933 | 20 | 0.19 | G 3/4" | 530 | 385 | 590 |
| COLDSPELL+ 40 | 8059240934 | 40 | 0.19 | G 3/4" | |||
| COLDSPELL+ 60 | 8059240935 | 60 | 0.33 | G 1 1/2" | |||
| COLDSPELL+ 80 | 8059240936 | 80 | 0.53 | G 1 1/2" | |||
| COLDSPELL+ 100 | 8059240937 | 100 | 0.72 | G 1 1/2" | |||
| COLDSPELL+ 150 | 8059240938 | 150 | 0.80 | G 1 1/2" | 665 | 490 | 710 |
| COLDSPELL+ 200 | 8059240939 | 200 | 0.82 | G 2" | |||
| COLDSPELL+ 250 | 8059240940 | 250 | 0.97 | G 2" | |||
| COLDSPELL+ 300 | 8059240941 | 300 | 1.11 | G 2" | - | - | - |
| COLDSPELL+ 400 | 8059240942 | 400 | 1.47 | G 2 1/2" | 935 | 820 | 865 |
| COLDSPELL+ 500 | 8059240943 | 500 | 1.86 | G 2 1/2" | |||
* 02/2024
