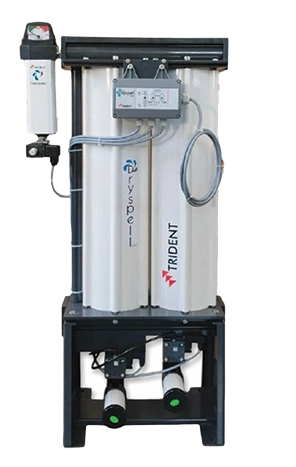

Dryspell Core
A leading manufacturer since 1988
Compressed Air Dryer manufacturers
Air dryer for air compressor Manufacturers
Dryspell Core
Principle of Operation
The atmospheric contaminants including the water vapour are concentrated in the process of air compression. As a result, the dew point of the compressed air gets raised in comparison to the free atmospheric air which leads to condensation within pipes as the compressed air cools downstream of the compressor. Users of compressed air have to confront a gamut of operational problems if the compressed air carries excessive water either in liquid or vapour phase. Some of them are freezing of outdoor airlines, corrosion in piping and equipment, malfunctioning of instruments that control the pneumatic process, fouling of processes and products and more as such.
Compressed air is normally fully saturated with water vapour. Air dryers are used to remove water vapour from compressed air. Heatless desiccant air dryers are the most apt solution for drying air suitable for Compressed air, which are used in precision machines that need a Pressure dewpoint in the range between -20°C to –70°C.
Trident Pneumatics Private Limited provides a complete range of heatless compressed air dryer to meet the specific needs of every industry. With a wide range of pressure dew points up to -40 °C, our dryers guarantee clean, dry air that safeguards your equipment and optimizes operational efficiency. They effectively eliminate moisture from compressed air systems, preventing corrosion, equipment damage, and product spoilage.
Salient Features
- Designed for ISO 7183:2007
- Dryer quality class: ISO 8573-1:2010 class 3
- Consistent Dew Point performance
- Noise Level <70 dBA ; Pressure Drop < 0.3 kg/cm2(g)
- Aluminium Construction
- Free From Corrosion & Scale Formation at Inner and Outer sides
- Uses High Crush Strength Adsorbent Materials
- Noise Level <70 dBA l Pressure Drop < 0.3 kg/cm2
- Aluminum Construction Free From Corrosion & Scale Formation at Inner and Outer sides
- Uses High Crush Strength Adsorbent Materials
What Trident Offers
Trident pneumatics are perfect examples of vast knowledge, rich experience, meticulous engineering and skilled Compressed air dryer manufacturer, which enable it to develop dryers with highest quality performance. The Dryspell Plus series launched successfully by Trident in the Indian and overseas market is a proof of guarantee, warranty and reliability. These dryers are also very economical, manufactured in large quantities, designed and tested to provide 100% clean dry oil free compressed air and require no maintenance in comparison to the refrigeration dryers of it’s range. The Dryspell plus is an ultimate compact dryer with valves and piping built into the manifold. These dryers are suitable not only for point of use but also are available for 10, 20, 30, 45, 60, 100, 125,200, 250, 300, 375 scfm. Paint shops, instrumentation, hand tools, powder coating, CNC machines, automobile garages, dental equipment, pharma are some areas where these dryers are applied extensively.
Some of the key features of these Air Dryer Manufacturers are
- Provides manifold construction
- Provides a shuttle valve for low pressure drop that is controlled by the microprocessor.
- Equipped with a built in microprocessor based controller.
- Equipped with a pre filter that has a borosilicate glass fibre element.
- The pre filter drain valve is not only timer based but also gets activated by the controller.
Trident products range from the compressor room to all points of use in the factory due to their vast knowledge and advanced technology of air dryers in the field of compressed air, gas and fluid separation. The components of these pneumatics are designed and meticulously matched for efficient optimum air compressor energy. Trident, through their engineering service gives real shapes to various concepts of new products. This builds a good relationship that leads to confidence, reliability and energy savings for the coming years.
Product Range
| Model | Product Code | Flow (m³/hour)** |
End Connection BSP |
Dimensions (mm) | Recommended Accessories | |||
|---|---|---|---|---|---|---|---|---|
| H | W | D | Pre filter | Post filter | ||||
| Dryspell Core 10 | PD470 | 10 | ½” | 1036 | 324 | 171 | T100YEA | T100YIA |
| Dryspell Core 20 | PD471 | 20 | ½” | 913 | 398 | 229 | T100YEA | T100YIA |
| Dryspell Core 30 | PD472 | 30 | ½” | 1177 | 398 | 229 | T100YEA | T100YIA |
| Dryspell Core 45 | PD473 | 45 | ½” | 998 | 427 | 304 | T100YEA | T100YIA |
| Dryspell Core 60 | PD474 | 60 | 1” | 1191 | 523 | 304 | T250YEA | T250YIA |
| Dryspell Core 75 | PD475 | 75 | 1” | 1390 | 523 | 304 | T250YEA | T250YIA |
** As per ISO 7183 Option A2 inlet conditions.
Want to know more?
Interested in how our technology maintains the dryness of compressed air and improves your system’s efficiency and performance? Contact us today for detailed insights and how our solutions can meet your needs.
